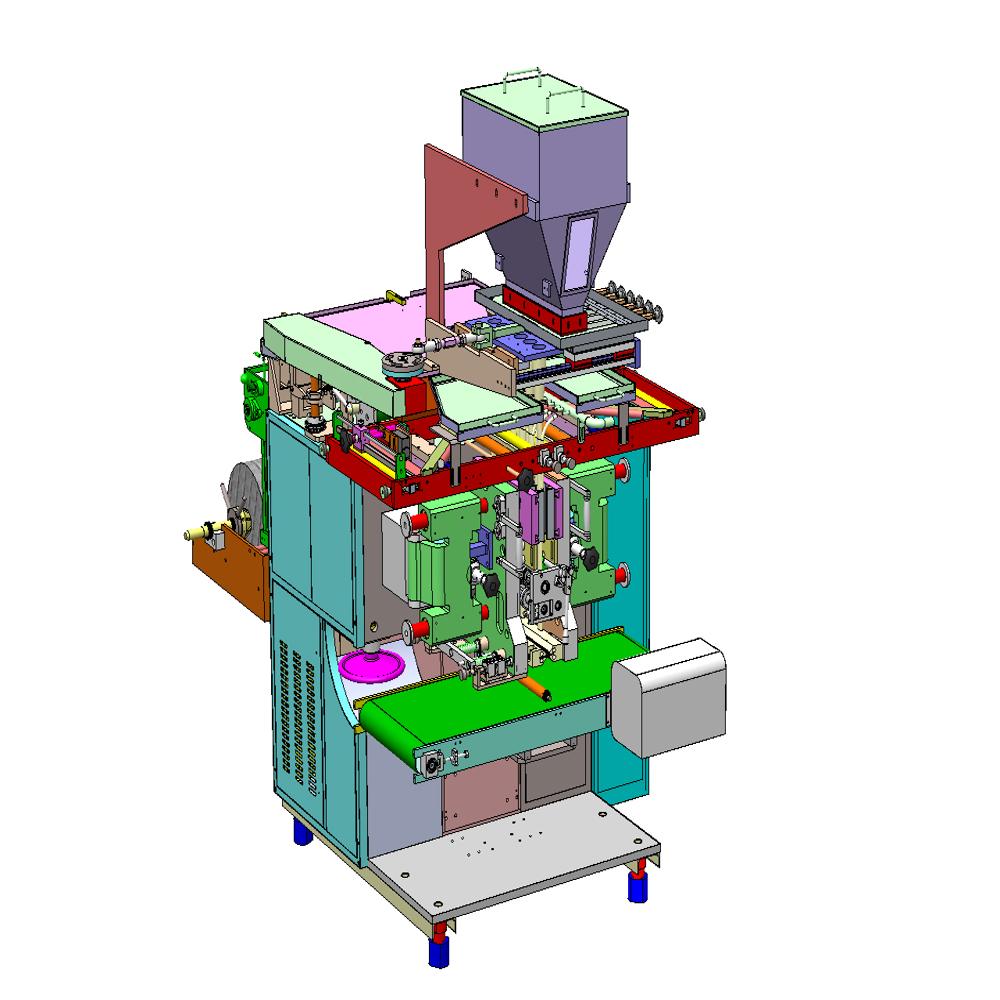

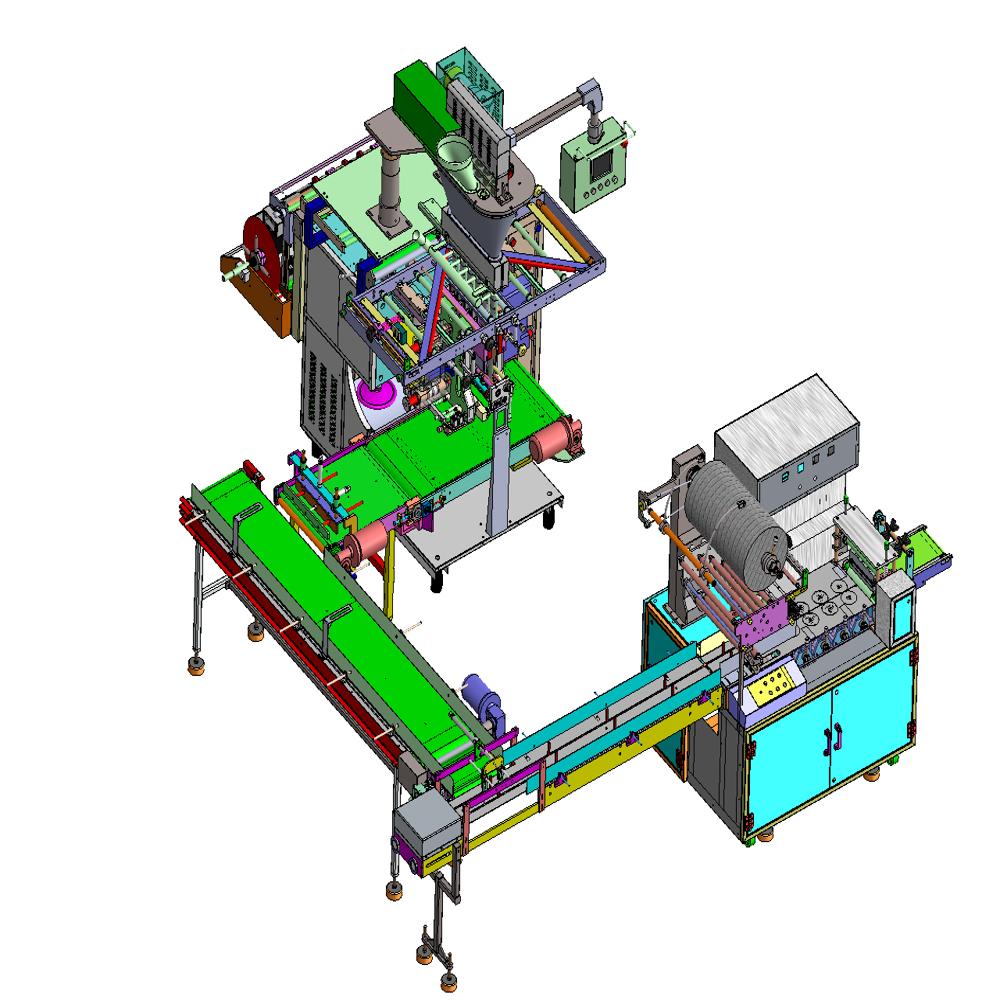

Multi Track High Speed Tea Packing Machine

Additional Attachments

Bach Cutter-max Up To 99 , Collecting System,hot Foil Stamping/ Embossed Coding

All Product Contract Parts

Ss-316 / Ss-304 ( Stainless Steel/special Grade Of High Carbon Steel

Compressed Air

12 Cfm @ 6 Bar Water Content: Below 0,01%

Control

Plc ( Programmable Logic Control ) Fully Automatic

Dimensions

L:3500 Mm W:2200 Mm H:3000 Mm

Feature

Photo Registrstration Control System ,film Unwinding Unit, Web Control System

Filling Accuracy

Plus Minus 2%

Filling System

Volumetic Cup Filling, Servo Auger Filler

Film Material

Heat Sealable

Max Diameter Of Roll

460 Mm

Motor

A/c Motor , Servo Motor

Net Weight

1705 Kg (Approx )

No Of Track

2 To 6 Tracks ( Max ) ( Depending Upon The Width Of Roll )

Pouch Type

Four Side Sealed

Power Supply

415 V/a.c/three Phase/50 Hz

Product To Be Packed

Pharmaceutical Product,granules,powder, Spices Powder, Milk Powder, Sugar, Tea, Ors Powder Etc.

Quantity To Be Packed

2 Gms - 50 Gms ( Depending Upon Product )

Repeat Length

40 - 200 Mm

Roll Width

Up To 600 Mm ( Max )

Speed

40 To 80 Pouches /min/track

Temperature Controllers

Pid ( Proportional Integral Derivative )

Power Consumption

12 Kw
