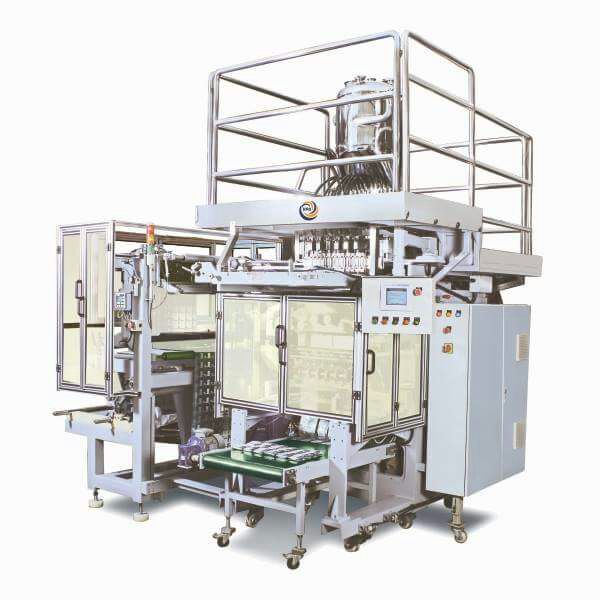

MT 1200 மல்டிட்ராக் மெஷின்

Additional Attachments

Bach Cutter-max Up To 99 , Embossed Coding , Notching

All Product Contract Parts

Ss-316 / Ss-304 ( Stainless Steel/special Grade Of High Carbon Steel

Dimensions

L:3000 Mm W:2200 Mm H:2700 Mm

Filling Accuracy

Plus Minus 2%

Filling System

Powder And Granules Servo Driven Volumetic Cup Filling , Liquid & Paste Spool

Max Diameter Of Roll

500 Mm

Motor

Servo Motor-drives

Net Weight

2500 Kg (Approx )

No Of Track

2 To 12 Tracks ( Max ) ( Depending Upon The Width Of Roll )

Pouch Type

Four Side Sealed

Power Supply

415 V/a.c/three Phase/50 Hz

Product To Be Packed

Liquids &paste ( Shampoo,katchup,oil,cream Etc ),granules ( Tea,pan Masala Etc )

Quantity To Be Packed

2 Gms - 50 Gms ( Depending Upon Product )

Repeat Length

40 - 200 Mm

Speed

50 To 60 Pouches /min/track

Temperature Controllers

Pid ( Proportional Integral Derivative )

Compressed Air Consumption

15 Cfm @ 6 Bar Water Content: Below 0,01%

Max Roll Width

Up To 1000 Mm ( Max )

Controlled Through

Plc ( Programmable Logic Control ) Fully Automatic

Power Consumption

23 Kw

Features

Photo Registrstration Control System ,film Unwinding Unit, Web Control System

Model Name/Number

MT-1200
